LEDBLADE is a top-notch visual asset for creative lighting design

0.5 m Straight unit / Stripe

  • Pixel pitch: 10 mm or 16 mm
  • Cover: black or transparent
  • Indoor or outdoor version

1.0 m Straight unit / Stripe

  • Pixel pitch: 10 mm or 16.6 mm
  • Cover: black or transparent
  • Indoor or outdoor version

2.0 m Straight unit / Stripe

  • Pixel pitch: 10 mm or 16.6 mm
  • Cover: black or transparent
  • Indoor or outdoor version

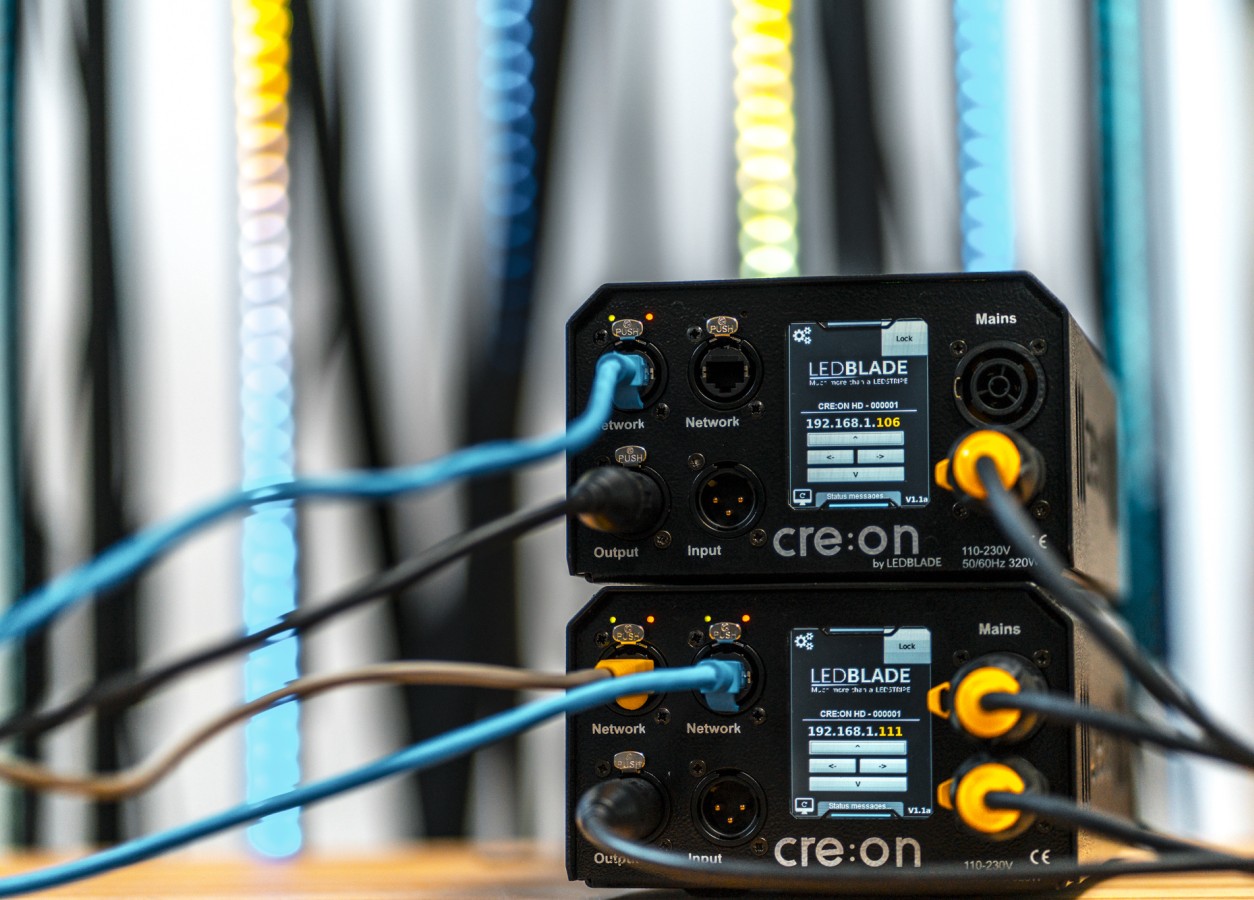

CRE:ON Hybrid Drive – NEW

  • Built in power supply
  • 1000 pixels output
  • Switchable SPI/ArtNet/sACN modes
  • 2.8” touch screen
  • Daisy chain power & Ethernet

Curved unit – CUSTOM-MADE

  • r ≥ 400 mm
  • Pixel pitch: 10 mm or 16.6 mm
  • Cover: black or transparent
  • Indoor or outdoor

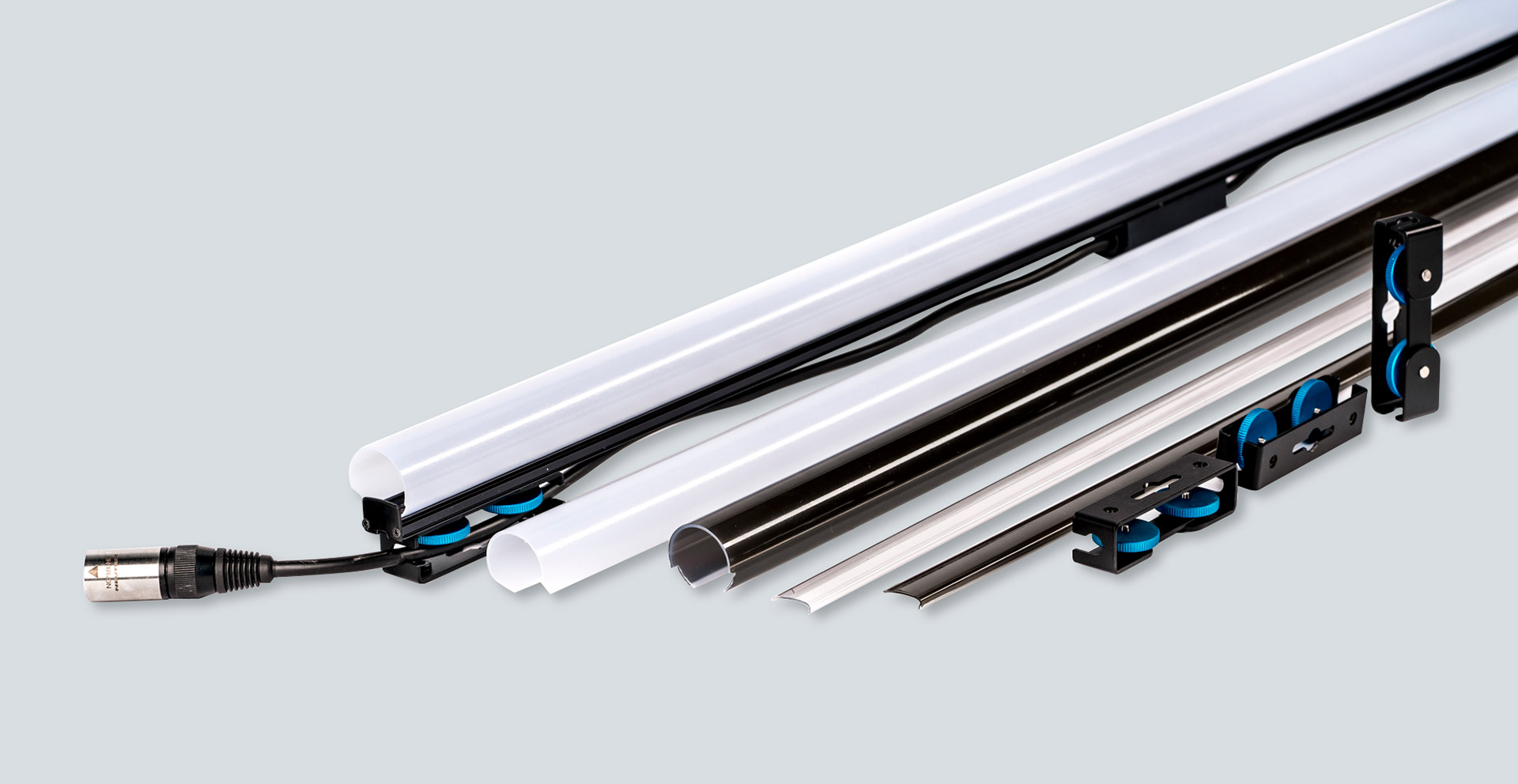

Accessories

  • Round diffusor cover
  • Black cover
  • Cables
  • Hanging Brackets

Power Supply Unit

  • AC input: 100-230V
  • DC output: 24V
  • Power: 400W
  • Indoor and outdoor versions (IP54)

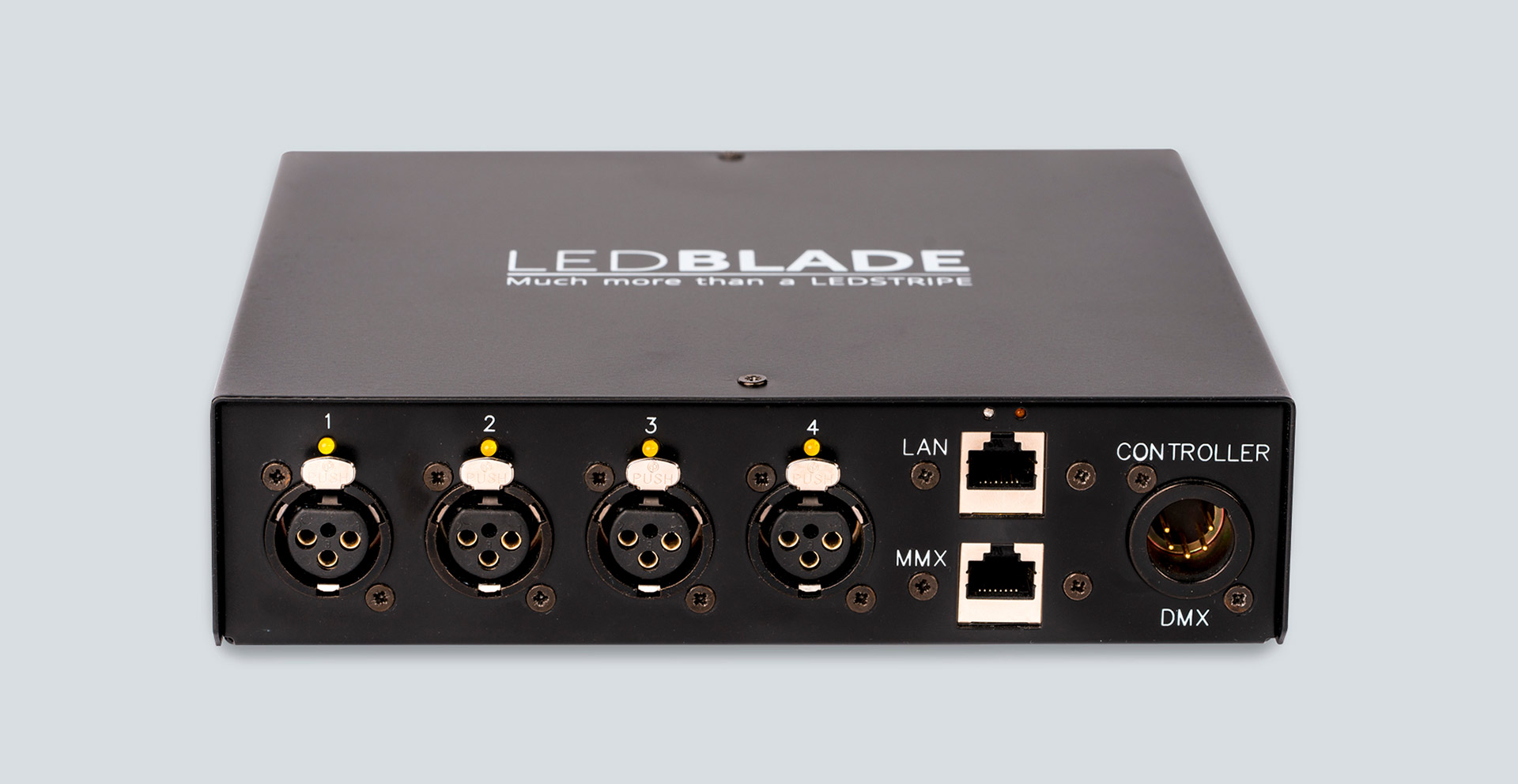

Master Controller – DISCONTINUED

  • Drive up to 8000 pixels
  • Max. pixels/output: 1000
  • Control connectors: DMX, LAN, SD card
  • Link via Ethernet

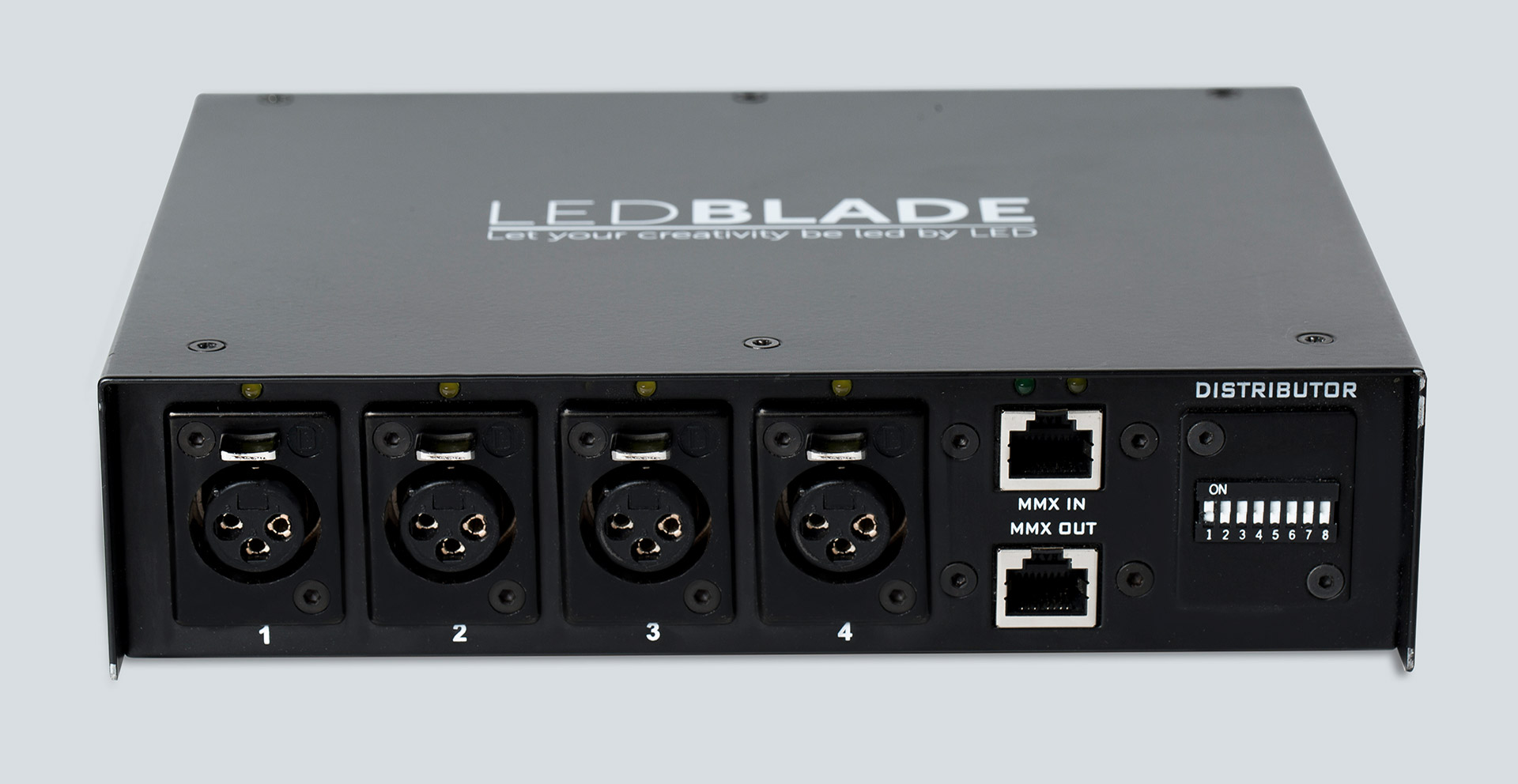

Distributor – DISCONTINUED

  • Expands the number of outputs
  • 1000 pixels / output
  • Link via MMX to the Master Controller

Why LEDBLADE?

Key featuers & benefits

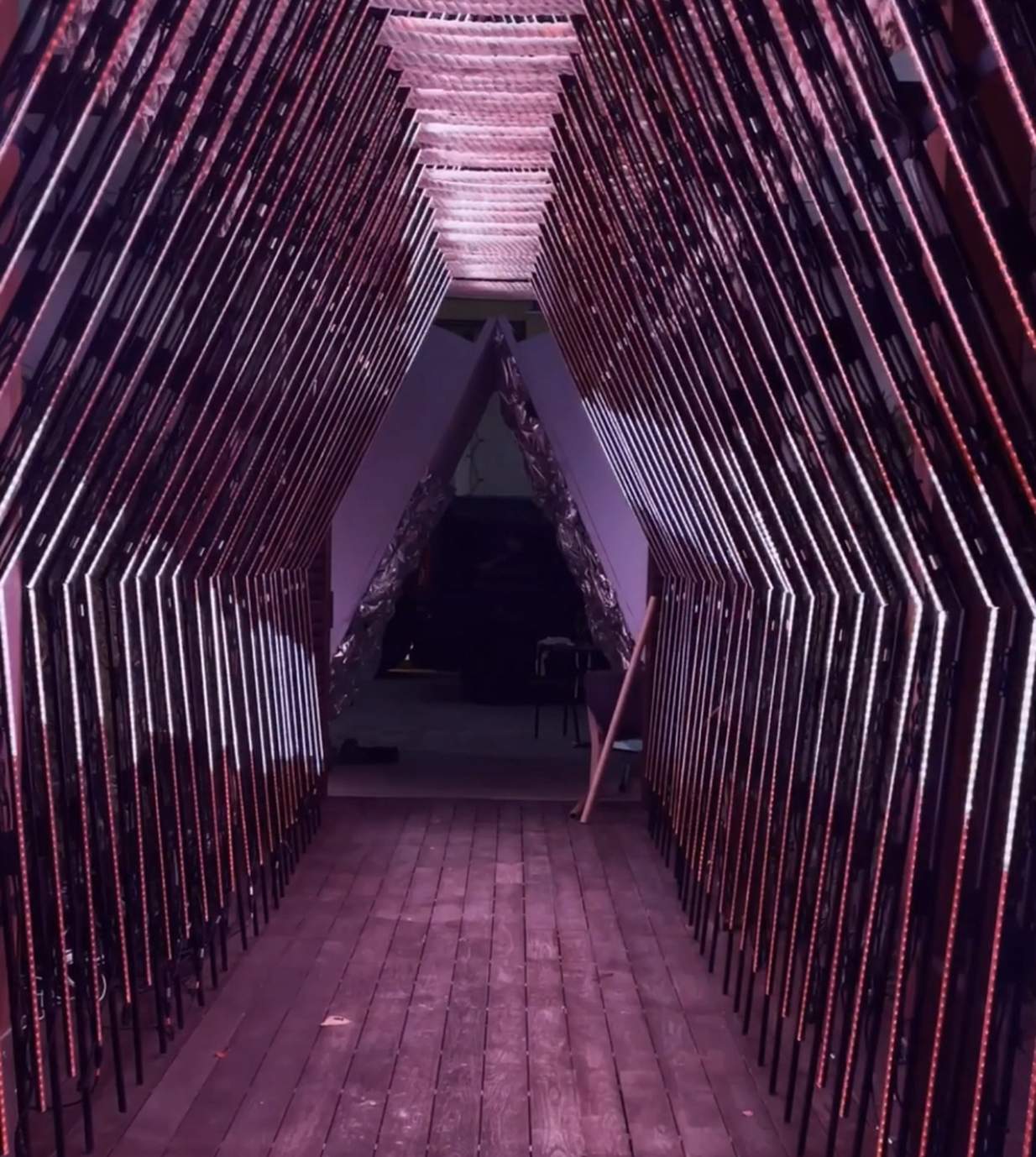

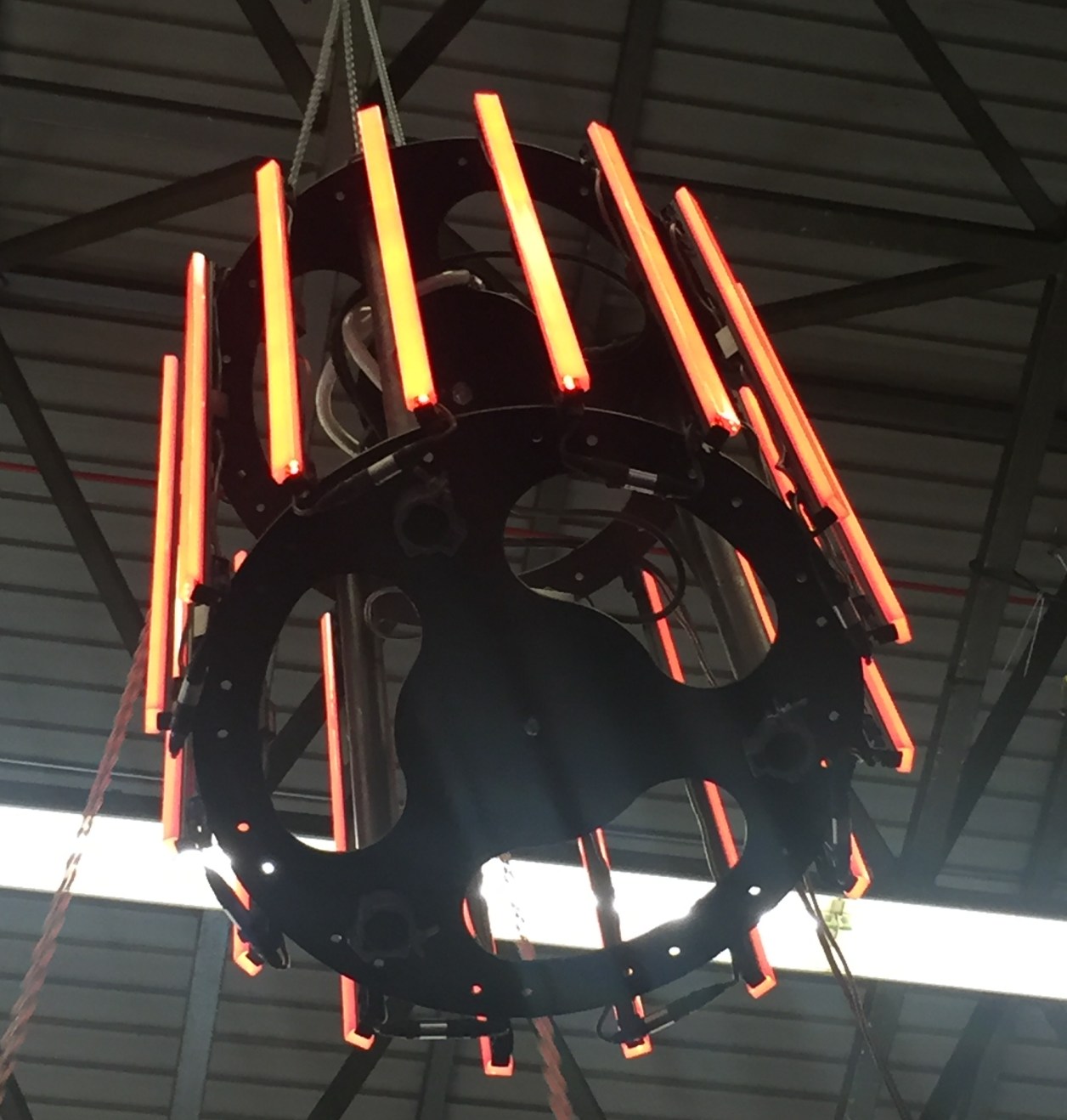

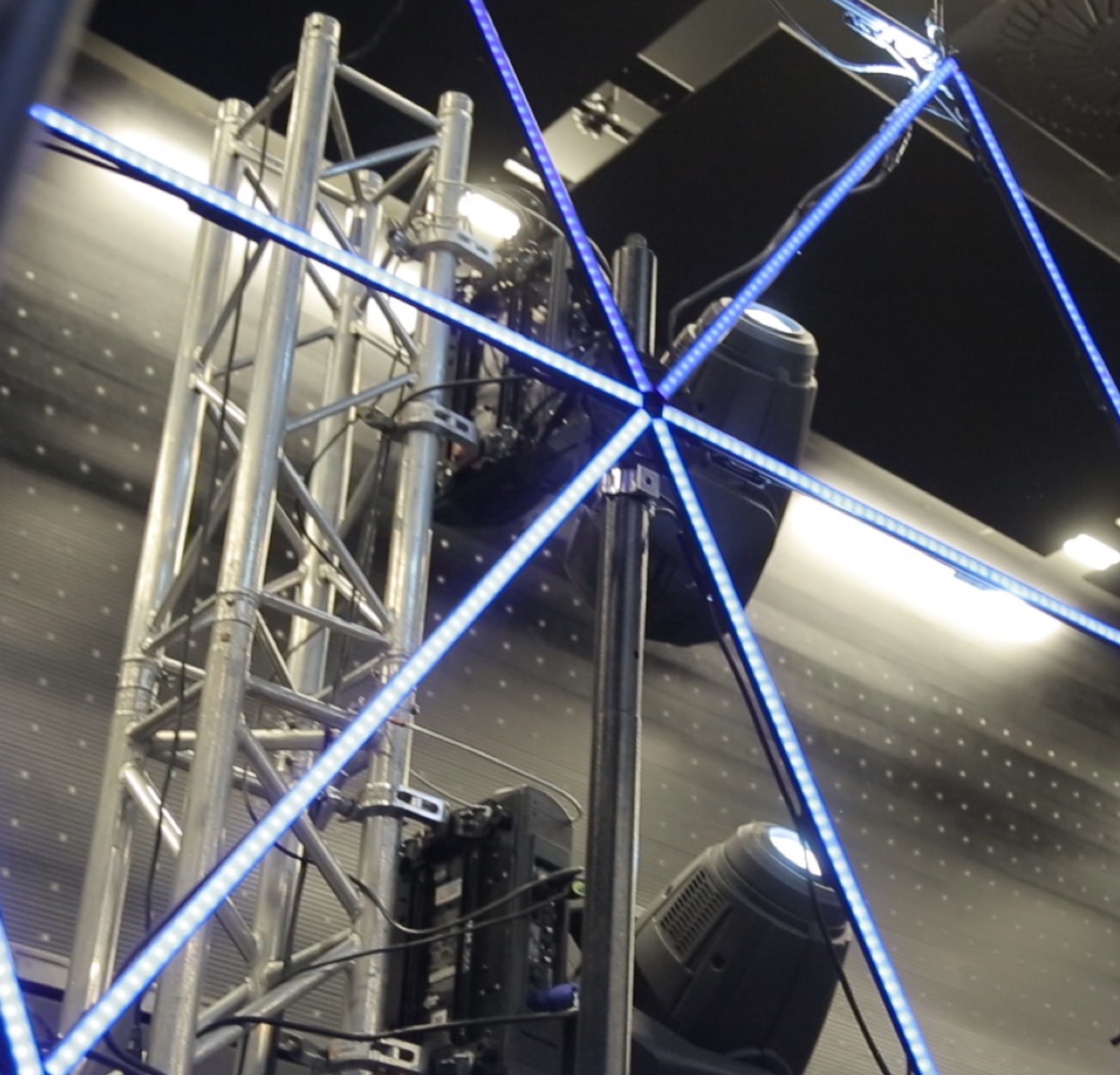

Check out our references


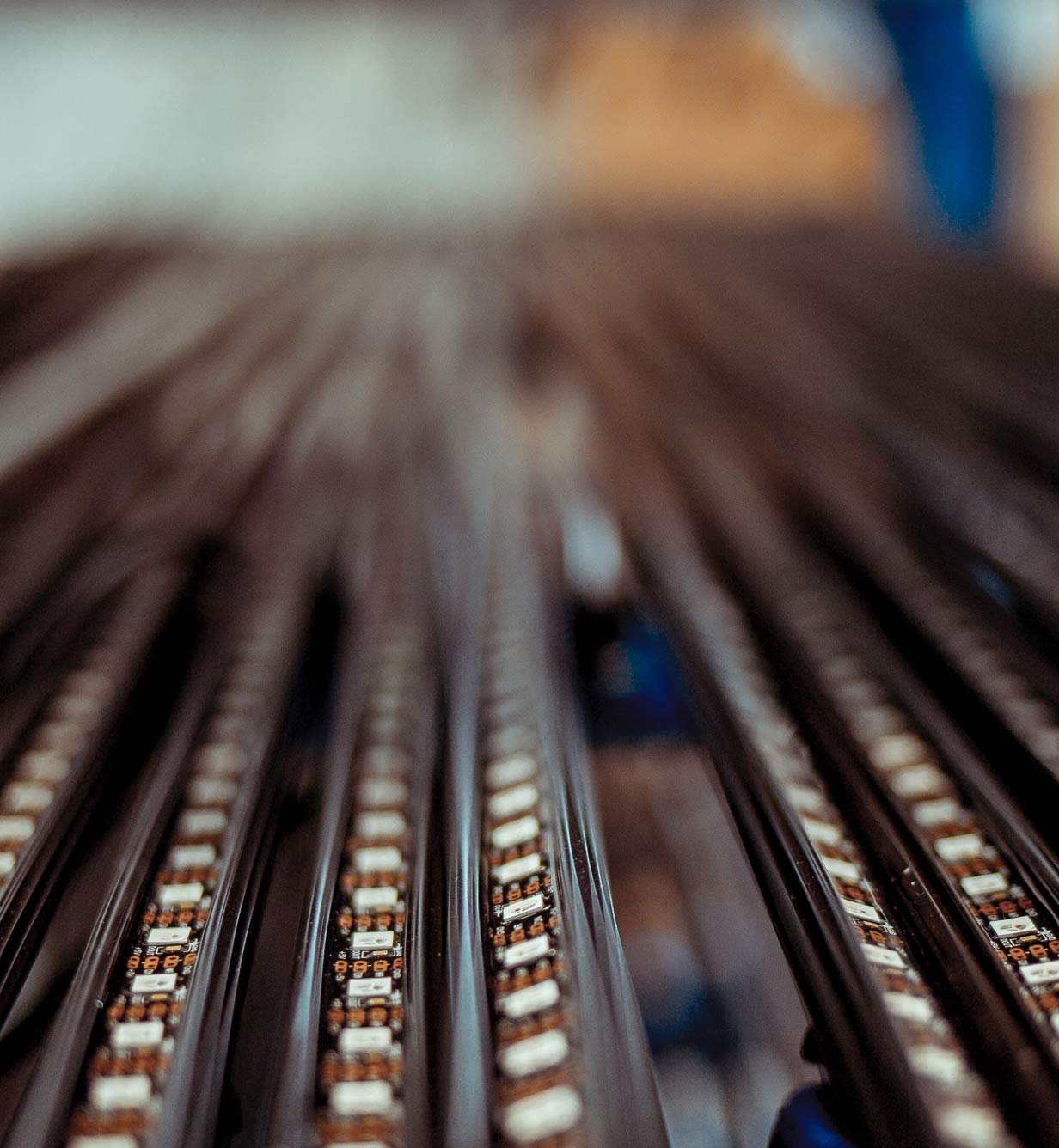

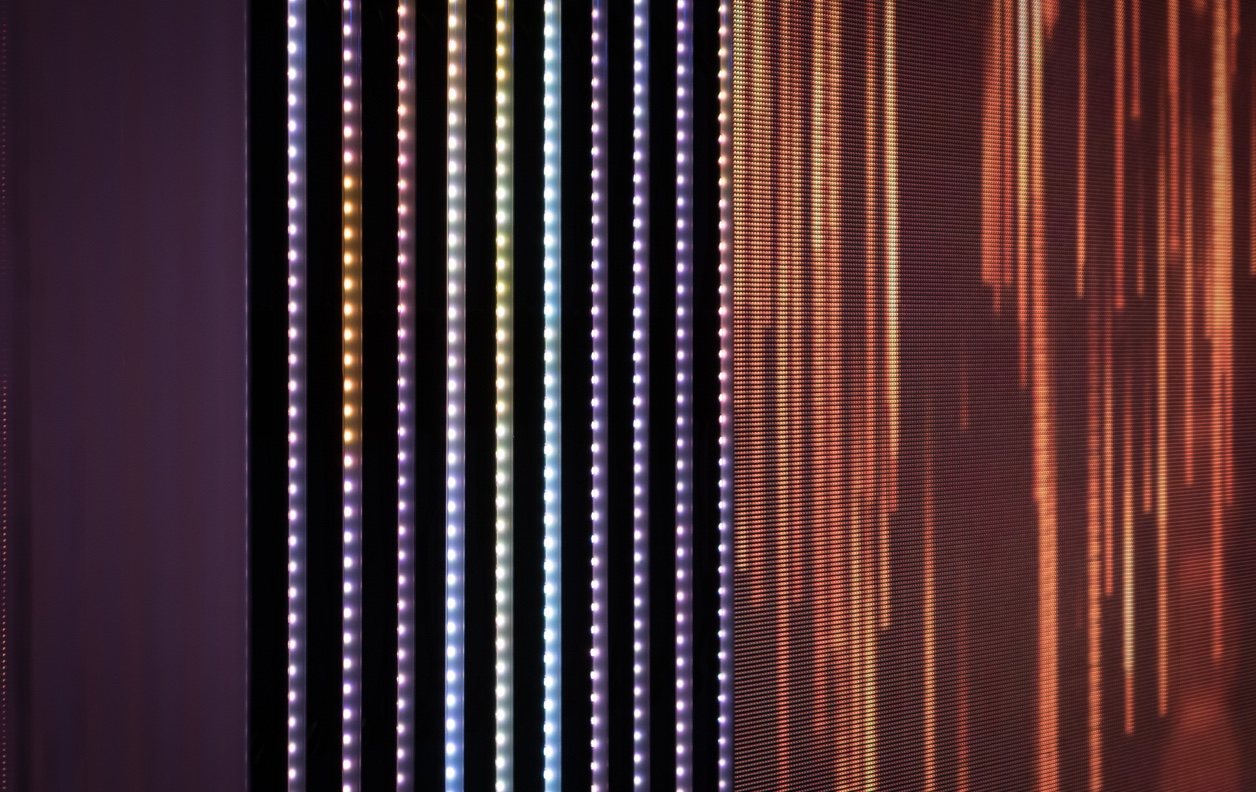

Technology

Reliability based on 20+ years of hands-on experience


Specifications

LEDBLADE is literally much more than a ledstripe

Stripe

Download 10 mm Pixel Pitch Ledstripe Datasheet

Download 16 mm Pixel Pitch Ledstripe Datasheet

Length

494 mm, 994 mm, 1994 mm


Width

34 mm incl. connector – 14 mm excl. connector assembly


Height

19.5 mm


Weight

180 g, 360 g, 760 g


Fixture Color

Black


Pixel pitch

16.6 mm (60 pixel/m)


Clear cover

3400 Nit


Frosted filter

2670 Nit


*Black cover

850 Nit


*Black + Frosted filter

640 Nit


Viewing angle

150°


LED configuration

3-in-1, SPI WS2812B, GRB, SMD 5050


Lifetime

50,000 hours


Connector

3-pin XLR


Operating temperature

-20°C -> 50°C


Operating humidity

10 – 90%


Colors

16.5 M (3×8 bit)


Mounting

Multiple movable holders on track

Power Supply:

Download System Components Datasheet

Dimensions

Lenght:125 mm, Width: 305 mm, Height: 62 mm, Weight: 2 kg


AC input voltage

34 mm incl. connector – 14 mm excl. connector assembly


DC output voltage

24 V


Daisy-chained

16.5 m (60 pixel/m)


Max. pixel/PS

1000

Cabling:

Download System Components Datasheet

Controller/Distributor to PS

Standard 3-pin XLR cable up to 100 m


LED Stripe to LED Stripe

Special 3-pin XLR cable up to 5 m

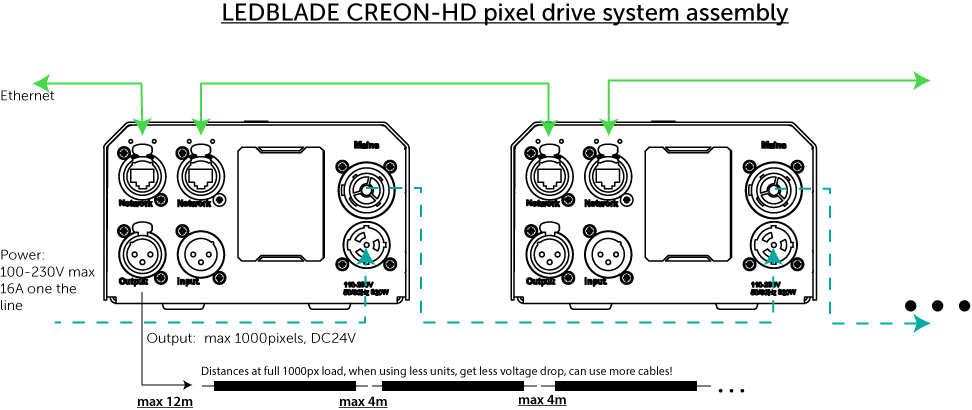

CRE:ON Hybrid Drive
Built in power supply


Switchable SPI / ArtNet modes


2.8” touch screen


Daisy chain power and Ethernet


1000 pixels output

Curved stripe
Radius

above r400mm


Height

19,5 mm


Exactly the same parameters as the straight units

Controller / Distributor:

Download System Components Datasheet

Dimensions

Lenght: 200 mm, Width: 170 mm, Height: 57 mm, Weight: 1200 g


Number of outputs

4


Max. pixel/output

1000


Control connectors

DMX (in-out 5-pin XLR), LAN, SD card


Analog stripes

yes – DMX out, USB-DMX out

Control Software:
Hardware requirements

CPU Intel i5 or higher
GTX750 or higher
4Gb RAM or more


System requirements

Win 10

Accessories
Round diffusor – It turns your BLADEs into pipes


Corner blocks – order as a sheet metal part or print for yourself
90, 120, 3×120, 135, 3×135


Layer clamp – just clip and connect


Extra hanging brackets – give me one more


Cable clips – organize your cables


Signal booster – above the limits


Magnets – the fastest way to connect

* Optional

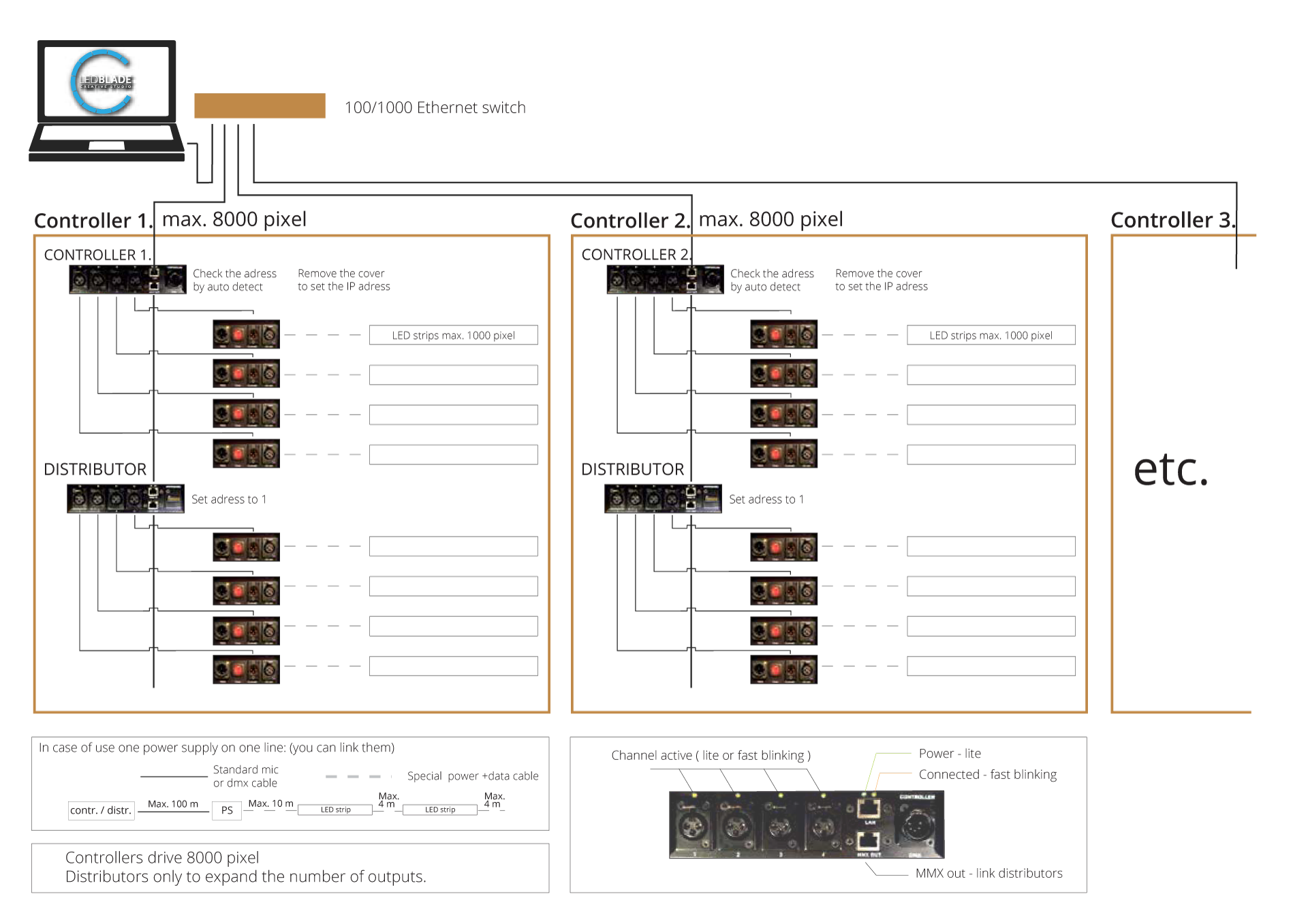

** See the block diagram for detailed information

*** XLR wiring – PIN1 and PIN2 – 2.5mm2, PIN3 – 1mm2 unshielded for custom made products the MOQ 500M, production time 8 weeks

**** We recommend to order our pre set PC
